| Availability: | |
|---|---|
NOx ≤ 500 mg/Nm³ 2}
Application Area | Unit | Natural Gas Application 50Hz | Associated Petroleum Gas Application 50Hz | High-Concentration CBM Application 50Hz | Biogas Application 50Hz | Industrial Gas Application 50Hz | Blast Furnace Gas Application 50Hz | Coal-to-Gas Application 50Hz |

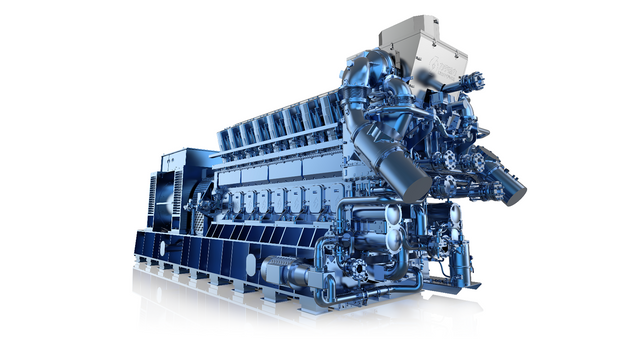

Genset Model | – | LY2616GH-T | LY2616GH-T1 | LY2616GH-W | LY2616GH-Z | LY2616GH-M | LY2616GH-G | LY2616GH-M1 |
Electrical Power3} (±5%) | kW | 4000 | 3000 | 3800 | 3500 | 2800 | 2700 | 2800 |
Fuel Consumption | kW | 9524 | 7792 | 9268 | 8750 | 7368 | 7479 | 7821 |
Electrical Efficiency4} | % | 42.0 | 38.5 | 41.0 | 40.0 | 38.0 | 36.1 | 35.8 |
Thermal Efficiency | % | 46.0 | 48.0 | 46.3 | 46.5 | 48.1 | 48.6 | 48.3 |
Total Efficiency | % | 88.0 | 86.5 | 87.3 | 86.5 | 86.1 | 84.7 | 84.1 |
Note: Factors such as gas quality, air pressure, calorific value, operating environment, and personnel operation level will affect the final output of the unit.
• Sewage Treatment Biogas (65%CH₄ / 35%CO₂)
• Biomass gas (60%CH₄ / 32%CO₂, the rest are N₂)
• Landfill gas (50%CH₄ / 27%CO₂, the rest are N₂)
• Industrial gas (75%CO, 6%H₂, 3%CH₄, 9%CO₂, the rest are N₂)
2}NOx emission: NOx ≤ 500 mg/Nm³, NOx/Nm³ (Content of dry exhaust gas in 5% O₂)
3}Refers to ISO8525-1, 50Hz Generator U=10kV, Cosphi=1.0, the minimum methane number of natural gas is MN70
4}Refers to ISO3046-1, 50Hz Generator U=10kV, Cosphi=1.0, the minimum methane number of natural gas is MN70
Greater Reliability and Durability
| Location: | Inner Mongolia |
| Installed Engines: | 22 x LY1600 |
| Power Output: | 26.4 MW |
| Energy Source: | Industrial gas |
| Commissioned: | 2022 |
