How the Piston Moves in a Combustion Engine

The piston in a combustion engine moves because burning fuel and air create hot gases. These gases expand and push the piston down. You can see this happening in LIYU's gas-fired internal combustion generator sets.

• The ignition system uses strong sparks to initiate the burning process.

• Piston rings from commercial engines assist the piston in moving smoothly and maintaining a proper seal.

• A linear electric machine aids in starting the engine. It also facilitates the movement of the piston and converts energy from gases into electricity.

Key Takeaways

• The piston moves because hot gases push it. These gases come from burning fuel and air. This movement gives power to the engine.

• Piston rings make a tight seal. They stop gas from leaking out. This helps the engine work well.

• The four-stroke cycle has four steps: intake, compression, power, and exhaust. These steps help the engine run smoothly and well.

• The engine needs good lubrication. Lubrication lowers friction and cools the piston. It also helps the engine last longer.

• Knowing how pistons work can help you take care of your engine. It can also make your engine work better.

Piston in a Combustion Engine

Combustion Chamber Pressure

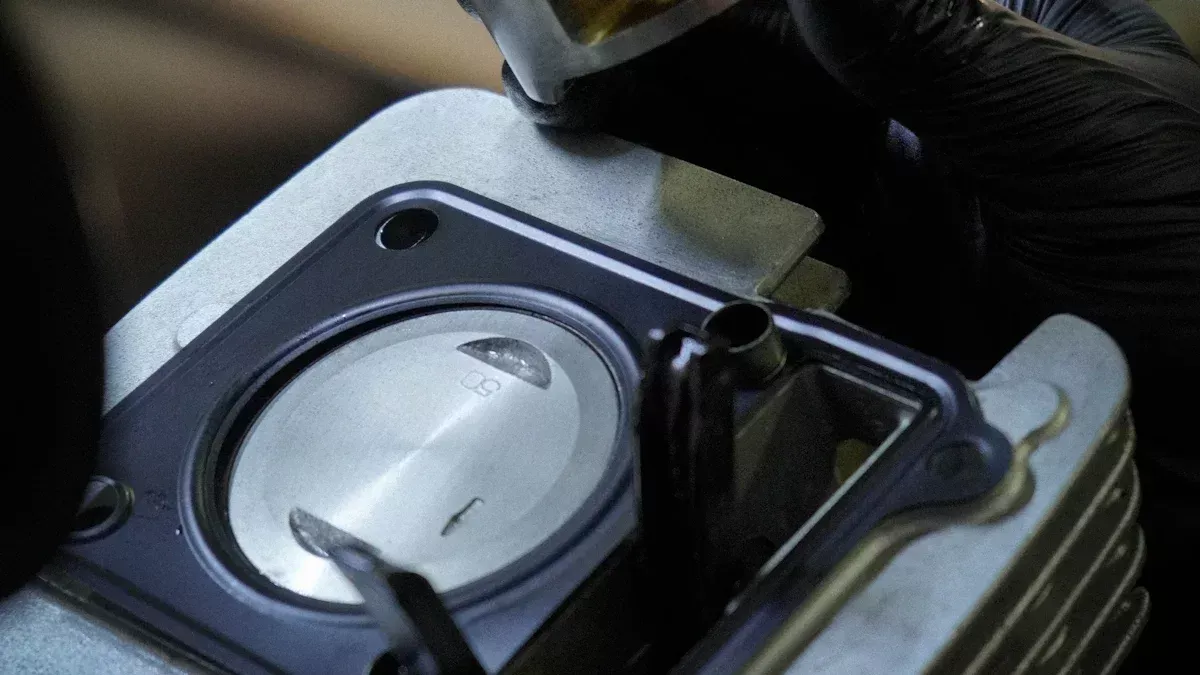

If you look inside an engine, you will find the piston inside a cylinder. The area above the piston is called the combustion chamber. This is where fuel and air mix together. When the spark plug fires, it lights the mixture. Hot gases form fast and start to expand. This makes a lot of pressure in the chamber.

In a diesel engine, air and fuel do not mix before they go into the cylinder. The piston only squeezes air, making its pressure much higher than in a gasoline engine—sometimes up to 25 times more. The temperature goes above 400 degrees. When fuel is added, it burns right away because of the heat and pressure. Diesel engines use this high compression to make more energy and torque than gasoline engines.

As the piston squeezes the air to 1/16 of its first size, the temperature gets hotter than 400 degrees. This heat and pressure make diesel fuel burn without spark plugs.

Diesel engines have a high compression ratio. This makes them work better than gasoline engines. They get more energy from the same amount of fuel.

During the power stroke, the pressure in the combustion chamber can get very high. The piston must handle these strong forces. Here are some usual pressure numbers:

• At 15º after top dead center (TDC), the pressure can be 1000 PSI. This pushes down with about 12,000 pounds of force.

• When the piston moves down half an inch, the pressure drops to 500 PSI, or 6,000 pounds of force.

• After another inch, the pressure falls to 250 PSI, which is 3,000 pounds of force.

You can see that the piston faces huge forces every time fuel burns.

How the Piston Works

The piston moves because burning fuel and air make pressure. The piston is like a strong metal plug that slides up and down in the cylinder. When gases expand, they push the piston down. This movement gives power to the engine.

Many forces act on the piston:

• Pressure from burning gases pushes the piston down.

• Inertial forces happen when the piston changes direction fast.

• Torque is made when these forces work with the crankshaft.

The piston does more than just move up and down. It helps turn the energy from gases into motion. Here is how it works:

• The piston moves down during the intake stroke. This makes a vacuum that pulls in air and fuel.

• During the compression stroke, the piston moves up. It squeezes the air-fuel mix, making it hotter and under more pressure.

• When the mix burns, gases expand fast. The piston moves down hard, making energy.

• The piston moves up again to push out exhaust gases and finish the cycle.

To handle heat and pressure, makers use special materials for pistons. Here is a table with common materials and their uses:

The piston must be very strong. It faces high heat and big forces every time the engine runs. You can see how important the piston is for turning fuel into power.

Four-Stroke Cycle in an Internal Combustion Engine

The internal combustion engine has four main strokes. These strokes help turn fuel into power. The piston moves up and down in each stroke. This cycle repeats again and again. It helps your car engine run well. Let's look at each stroke and see how the piston moves.

Intake Stroke

First, the piston goes down inside the cylinder. This makes a vacuum in the chamber. Air and fuel get pulled in by outside pressure. The intake valve opens wide to let the mix in. The shape of the valve helps air move faster. A tuliped valve lets more oxygen fill the chamber. Good sealing keeps the mix inside for the next step.

Compression Stroke

Next, the piston moves up in the cylinder. Both valves stay closed tight. The piston squeezes the air-fuel mix hard. This makes the pressure and heat go up. Higher compression ratios help the mix burn better. Modern engines use ratios like 10:1. The compression stroke stores energy for the next step. Tightly packed mix gives more piston force.

• The compression stroke raises pressure and heat.

• More energy is stored for the next ignition.

• Diesel engines use even higher ratios, up to 25:1.

Power Stroke

Now comes the power stroke. The spark plug fires, or fuel gets injected in diesel engines. The mix burns very fast. Hot gases push the piston down hard. This makes the piston move with strong force. The connecting rod sends this force to the crankshaft. This is how you get engine power. The timing of fuel injection is important. Fuel should go in just before the piston reaches the top. This helps all the mix burn and makes pressure peak.

Exhaust Stroke

After the power stroke, the piston moves up again. The exhaust valve opens wide. The piston pushes out the burnt gases. This keeps the cylinder clean for the next cycle. The exhaust stroke uses pressure to push out gases. Good scavenging helps lower emissions and keeps the engine clean.

Tip: The four-stroke cycle happens thousands of times each minute. Every stroke is important for piston movement. This keeps the engine running and the motion going.

Motion Conversion

How a Piston Works with the Crankshaft

If you look inside an engine, you will see the piston move up and down. This starts with the power stroke. Hot gases push the piston down. The connecting rod links the piston to the crankshaft. As the piston moves, the rod turns and sends force to the crankshaft. The connecting rod acts like a bridge. It changes straight movement into spinning motion.

• The piston goes from top dead center to bottom dead center in each power stroke.

• The connecting rod moves the force from the piston to the crankshaft.

• The crankshaft has crankpins that help change straight movement into spinning motion.

• When the piston moves, the crankshaft spins and connects to the flywheel. The flywheel helps the engine run smoothly.

The connecting rods take the spinning force from the crank pin and turn it into a back-and-forth force on the wrist pin. This is important for how the engine works.

Every power stroke gives the crankshaft a burst of energy. This energy helps the engine turn and do work. It can power things like LIYU's generator sets.

From Linear to Rotational Motion

You might wonder how the engine turns up-and-down movement into spinning motion. The crankshaft is the main part that does this job. Its shape and balance are very important. A good crankshaft cuts down on shaking and helps the engine run better. When the piston pushes down, the crankshaft turns that push into spinning.

1. The crankshaft's shape and balance help stop shaking.

2. A balanced crankshaft makes the engine run smoother.

3. The crankshaft is placed so it works well with pistons and connecting rods.

Some energy can be lost during this process. The crank-slider system can cause parts to wear out and shake. More complex designs can make these losses bigger. Engine makers try to lower energy loss. They use new ideas and smart designs.

The crankshaft changes the power stroke's energy into smooth spinning motion. Careful engineering helps move energy from the piston to the crankshaft with less waste. Better exhaust systems and valve timing also help the engine work better and make more power.

The crankshaft's design and strength are very important for the engine. They affect how much the engine shakes and how smooth it runs.

Each time the piston moves down in the power stroke, you help make the spinning force that powers the engine and keeps your machines working.

Supporting Parts

Piston Rings

Piston rings are wrapped around the piston inside the engine. These rings help keep the combustion chamber closed tight. When the piston moves, the rings make a seal between the piston and the cylinder wall. This seal keeps hot gases from leaking out when the engine burns fuel. The pressure stays inside, so the engine has more power and works better.

• The top compression ring sits in the first groove on the piston. It stops gases from escaping and keeps the chamber closed.

• Piston rings also move heat from the piston to the cylinder wall. This helps the piston stay cool and not get damaged.

• The piston skirt helps guide the rings and keeps the piston moving straight. This stops the piston from rocking too much.

Piston rings face a lot of heat and rubbing. Makers use strong materials for these rings, like carbon steel, steel nitrided rings, ductile iron, and steel rings. These materials do not wear out fast and work well even when things get tough.

Tip: Good piston rings help your engine keep its power and run smoothly for a long time.

Lubrication

Engines need the right lubrication to keep the piston and cylinder wall working together. Engine oil makes a thin layer between moving parts. This layer cuts down on rubbing and stops metal from grinding together. Oil on the cylinder wall helps the piston slide easily and keeps it from wearing out.

• The cylinder liner has a special surface that helps oil stay in place. This makes the oil layer thicker and better.

• More oil means less rubbing and less wear. Studies show that using more oil can lower friction and wear by up to 70%.

• Lubrication also helps cool the piston and takes away heat from burning fuel.

Synthetic oils are best for engines that work really hard. These oils can handle high heat and protect the engine longer than regular oils. Most new engine oils have special chemicals that clean the engine and protect it when under pressure.

Remember: Keeping your engine oiled is one of the best ways to help it last and work its best.

Conclusion

You can see how burning fuel pushes the piston down. This starts a series of energy changes in the engine. Every engine part has an important job to do. The piston head, skirt, and pin all help the piston move well and keep power strong.

• The piston skirt helps keep the piston straight and guides the rings.

• Strong parts and good design help the engine work longer.

• LIYU's generator sets use this process to give steady power.

FAQ

How does the piston create power in the engine?

The piston moves down when hot gases push against it. This movement turns into spinning motion through the crankshaft. You get power that runs machines like LIYU's generator sets.

Why do engines need piston rings?

Piston rings seal the gap between the piston and cylinder wall. You keep gases inside the chamber and prevent leaks. Rings also help transfer heat and reduce friction.

What happens if the engine does not get enough oil?

You risk damaging the piston and cylinder. Oil reduces friction and cools moving parts. Without enough oil, metal parts can grind together and wear out quickly.

Can you use different fuels in LIYU's generator sets?

Yes, you can use natural gas, biogas, coalbed methane, hydrogen, or landfill gas. LIYU's technology lets you choose the best fuel for your needs.

How often should you check the piston and rings?

You should inspect pistons and rings during regular engine maintenance. Look for signs of wear, damage, or leaks. Good care helps your engine last longer.
